Tunbridge's Mill Bridge (as it was before March 1999)

from Spanning Time: Tour 11 - The Northern Tributaries of the White River

The Mill Bridge serves a busy road in the middle of Tunbridge village, just west of Route 110. Name boards on each gable proclaim "Mill Bridge - 1883," and another sign promises a "One dollar fine for a person to drive a horse or other beast faster than a walk or drive more than one loaded team at the same time on this bridge."

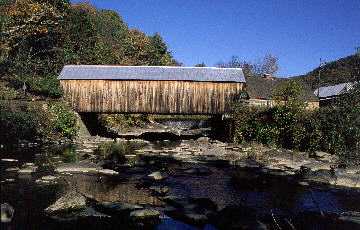

Mill Bridge Photo

The bridge, also known as the Hayward and Noble Bridge, uses the multiple-kingpost truss. The dam belonging to the mill that named the seventy-two-foot structure still stands upstream. The waters of the First Branch spill over the dam, flow over bedrock, then pass under the bridge. The bucket of flowers so common to the area stands out front.

The Vermont Division of Historic Sites described the surroundings when nominating the bridge for the National Register of Historic Places: "The bridge stands next to the 19th century mill district of the village. Together with an upstream dam and pond, the covered bridge and the mill buildings make an exceptionally attractive and functional historic element."

Photographic evidence from the 1870s indicates that an open bridge served at this location before it was replaced by the present covered bridge. The house at the west approach has changed little in outward appearance since then. The brick building beside the bridge was a black smith shop, first established in 1791. The first bridge at the site was built in 1797 and destroyed by flood the following year. The replacement bridge served until 1815 and was followed by a third. The dam above the bridge ran a grist mill.

To read more about the area and its bridges, check out A Pictorial History of Tunbridge, Vermont, by Euclid Farnham.

Build Date  Truss Type   Truss L.      Truss W/H      Overall L.   Builder
1883         Multiple       72'          15'6"/12'       78'        Unknown*
Location    Stream         Orientation   Status/Cap.     Deck Girders
Tunbridge  White R.1st Br.    NW-SE     in use/ 8T      no
VAOT #5. Other name(s): Hayward and Noble Bridge.Stands below mill dam in village
mill district. *Arthur Adams per Euclid Farnham, Tunbridge historian.
[World Guide To Covered Bridges Number: VT-09-09]

Listed on National Register of Historic Sites as Mill Covered Bridge 7/30/1974

Return to top

The Multiple Kingpost Truss

The multiple-kingpost truss is an excellent example of the use of a "series of combined triangles" to create a load-bearing span. The tops of the vertical members, or kingposts, are joined to the upper chord by mortise and tenon. The bases of the kingposts are joined to the lower chord by an interlocking notch or lap. The braces are set into steps cut into the kingposts without mortise, tenon or tongue. The assembly of upper and lower chords, kingposts and braces form a rigid truss that resists deformation. The weight of the bridge and its users tends to settle the truss, compressing the braces and upper chord while stretching the lower chord and the kingposts supporting it.

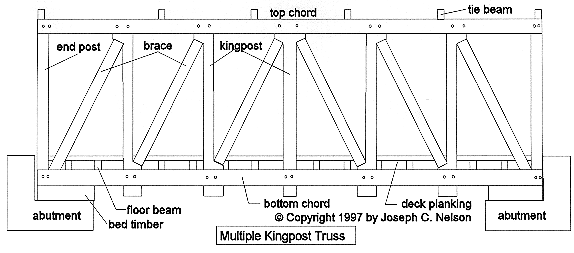

Multiple-kingpost Truss

Vermont's multiple-kingpost bridges average sixty-seven feet in length. They range in length from James Tasker's forty-six-foot Stoughton Bridge to the Union Village Bridge, which stretches a whopping 112 feet. The kingposts typically measure six by eight inches cut from a six-by- sixteen-inch timber to provide steps for the braces. The braces typically measure four by six inches.
